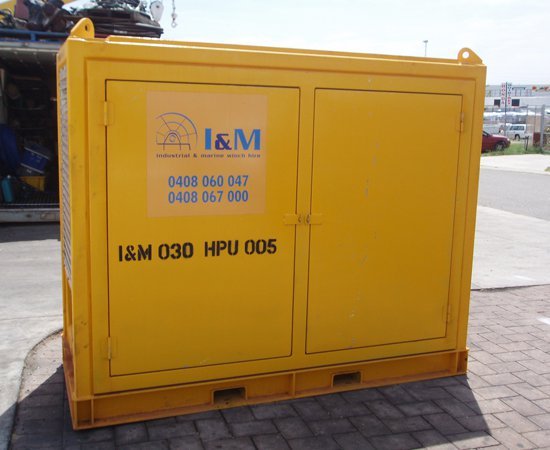

    IM30-HPU-005

    IM30-HPU-005 30kW Diesel Driven Hydraulic Power Unit

    Engine Make: Perkins 903 Series
    Engine Output (kW: 35kW @ 1500rpm
    Hydraulic Pump Size: 45cc
    Pressure (bar): 255bar (@ 60L/min)
    Max Flow (l/min): 60
    Weight (kg): 1750
    Dimensions (mm): 2350 x 1000 x 1900
    Certified Lifting Frame: Yes

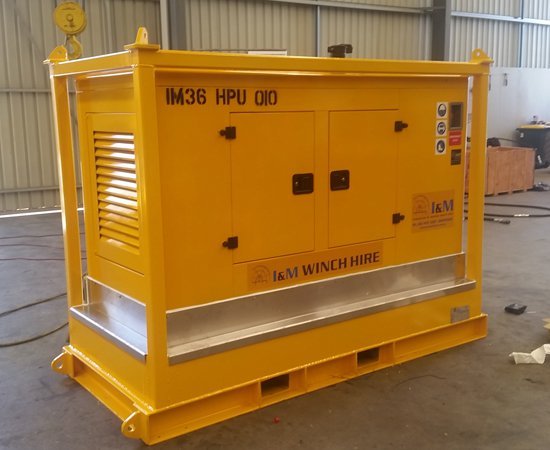

    IM36-HPU-010

    IM36-HPU-010 36kW Diesel Driven Hydraulic Power Unit

    Engine Make: Cummins 4BTA
    Engine Output (kW): 36kW @ 1500rpm
    Hydraulic Pump Size: 62cc
    Max Pressure (bar): 230bar (@ 80L/min)
    Max Flow (l/min): 80
    Weight (kg): 2500kg
    Dimensions (mm): 2500 x 1150 x 1700

    IM30-HPU-011

    IM30-HPU-011 33kW Diesel Driven Hydraulic Power Unit

    Engine Make: Hatz4141C
    Engine Output (kW): 33kW @ 1500rpm
    Hydraulic Pump Size: 45cc
    Max Pressure (bar): 255bar (@ 60L/min)
    Max Flow (l/min): 60
    Weight (kg): 1500kg
    Dimensions (mm): 2320 x 1090 x 1650


    IM36-HPU-013

    IM36-HPU-013 36kW Diesel Driven Hydraulic Power Unit

    Engine Make: Cummins 4BTA
    Engine Output (kW): 36kW @ 1500rpm
    Hydraulic Pump Size: 62cc
    Max Pressure (bar): 230bar (@ 80L/min)
    Max Flow (l/min): 80
    Weight (kg): 2300
    Dimensions (mm): 3100 x 1100 x 2100

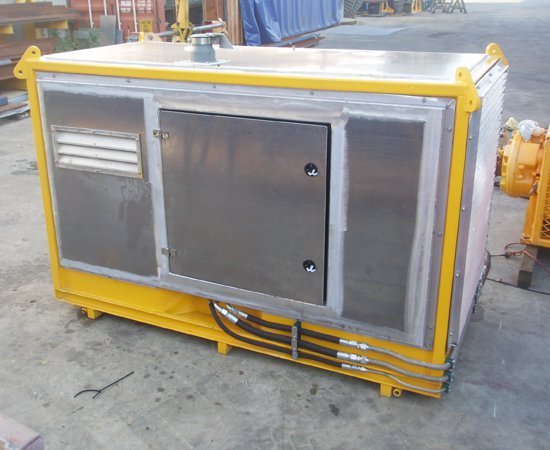

    IM30-HPU-012

    IM30-HPU-012 36kW Diesel Driven Hydraulic Power Unit

    Engine Make: Cummins 4BTA
    Engine Output (kW): 33kW @ 1500rpm
    Hydraulic Pump Size: 45cc
    Max Pressure (bar): 255bar (@ 60L/min)
    Max Flow (l/min): 60
    Weight (kg): 2050kg
    Dimensions (mm): 2320 x 1090 x 1650


    Up to 50kw diesel power packs

    These diesel power packs with a power rating of up to 50kw are powerful and flexible enough to cope with a wide range of power needs. We can customise all of our equipment for your specific needs and many of or diesel units are available with a choice of pump capacity options.

    Call the winch hire experts in Perth today on 08 9437 3589 for full details of our 50kW diesel power packs.
