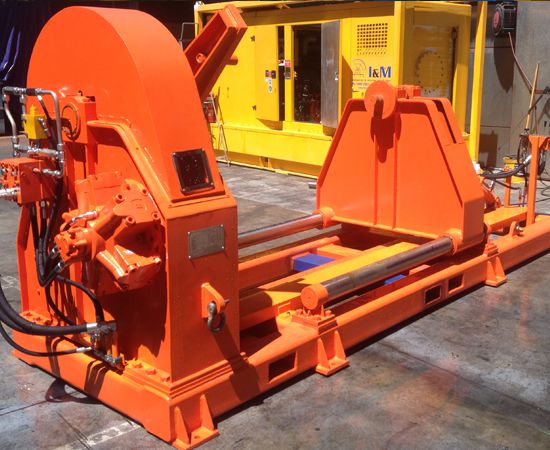

    IM-10TSPOOL-00z

    IM-10TSPOOL-00z 1x 10 Tonne Hydraulic Driven Spooler

    Number Available: 2
    Maximum Reel Weight: 10 tonnes
    Drum Speed: 0-6rpm
    Max Drum Width: 1.65m
    Min Drum Width: 490m
    Max Drum Diameter: 2.1m
    Overall Dimensions:
    4.4 m(L) x 1.4m(W) x 1.9m(H)
    Constant Tensions Mode:
    5 tonnes (back tension)
    Winching Mode:
    3 tonnes Pulling force (1st layer)
    Weight: 2700kg

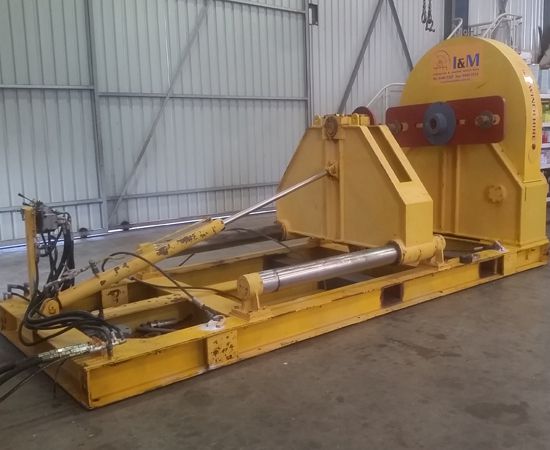

    IM-30TSPOOL

    30 Tonne Hydraulic Spooler


    Maximum Reel Weight: 30 tonnes
    Drum Speed: 0-7rpm
    Max Drum Width: 2.5m
    Shaft Diameter: 120mm
    Min Drum Width: 1m
    Max Drum Diameter: 2.4 m
    Stroke By Horizontal Cylinder: 1.39m
    Overall Dimensions:
    5.7m(L) x 2.15m(W) x 3m(H)
    Constant Tensions Mode:
    Max 15 tonnes (back tension)
    Winching Mode:
    5 tonnes Pulling force (1st layer)
    Weight: 7100kg

    Hire up to 30 tonne hydraulic spoolers in Perth

    Our spoolers are offered in a range of capacities to suit our customers' specific requirements. Please contact us with your specific needs and our design team will work with you to achieve your goals.

    For full details on our hydraulic spoolers and all of our spooling winches, contact our specialist hire team on 08 9437 3589.
