Mooring Winches

» SERVICES » WINCHES » MOORING WINCHES  » 10-30t

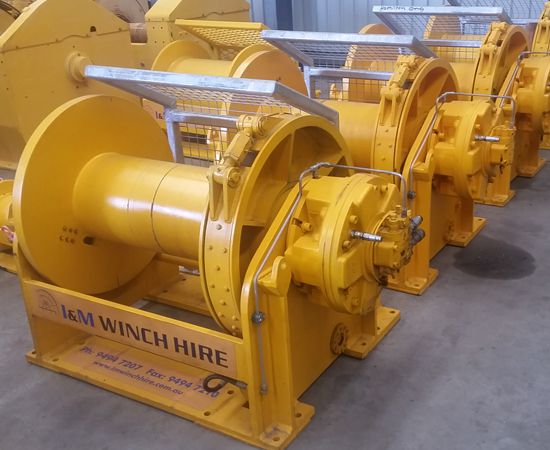

10 Tonne Mooring Winch IM-10TM-00X

IM-10TM-00X 10 Tonne Hydraulic Mooring Winch

Number Available: 4
Line Pull (tonne): 10
Brake Holding Capacity (tonne): 20
Line Speed (m/min): 15
Rope Diameter (mm): 22
Rope Capacity (m): 500
System Pressure (bar): 200
Oil Flow (L/min) : 107
Brake: Hydraulic / Manual
Dog Clutch: Manual
Base Dimensions (mm): 1290 x 1020

15 Tonne Mooring Winch IM15-HEC-78X

IM15-HEC-78X 20 Tonne Mooring Winch

Number Available: 4
Line Pull (tonne): 20
Line Speed (m/min): 15
Rope Diameter (mm): 32
Rope Capacity (m): 500
System Pressure (bar): 180
Oil Flow (L/min) : 160
Base Dimensions (mm): 1763 x 1388

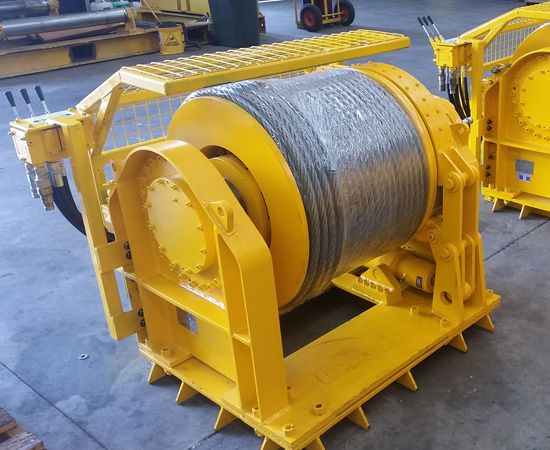

10 Tonne Mooring Winch IM-10TM-00A

IM-10TM-00A 10 Tonne Hydraulic Mooring Winch

Number Available: 2
Line Pull (tonne): 10
Brake Holding Capacity (tonne): 27
Line Speed (m/min): 10
Rope Diameter (mm): 24
Rope Capacity (m): 120
System Pressure (bar): 160
Oil Flow (L/min) : 97
Brake: Hydraulic / Manual
Dog Clutch: Hydraulically operated
Base Dimensions (mm): 1235 x 965

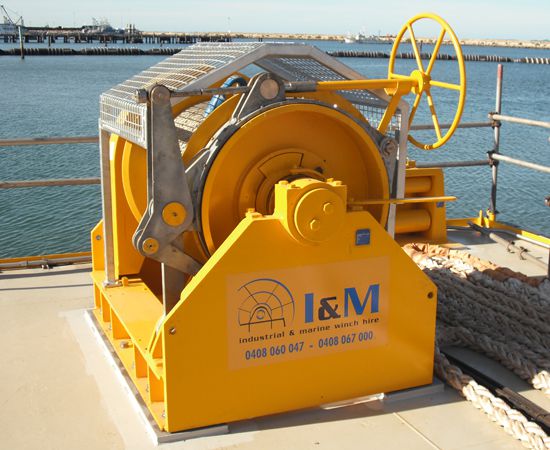

20 Tonne Mooring Winch IM20-HEC-78X

IM20-HEC-78X 20 Tonne Hydraulic Mooring Winch

Number Available: 4
Line Pull (tonne): 20
Brake Holding Capacity (tonne):40
Line Speed (m/min): 15
Rope Diameter (mm): 32
Rope Capacity (m): 500
System Pressure (bar): 180
Oil Flow (L/min) : 160
Brake: Hydraulic / Manual
Dog Clutch: Manual
Base Dimensions (mm): 1763 x 1388

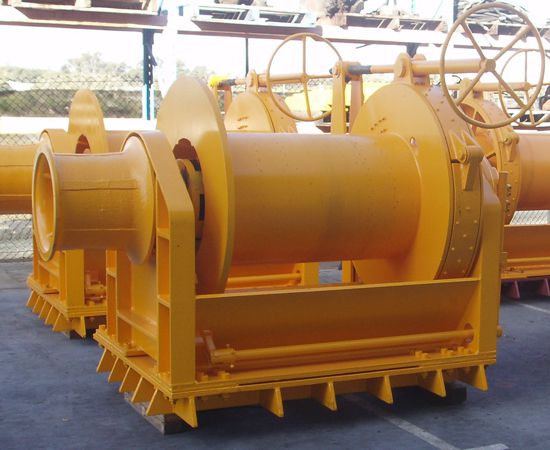

20 Tonne Mooring Winch IM-20TM-001

IM-20TM-001 20 Tonne Hydraulic Mooring Winch

Number Available: 1
Line Pull (tonne): 20
Brake Holding Capacity (tonne):60
Line Speed (m/min): 12
Rope Diameter (mm): 32
Rope Capacity (m): 700
System Pressure (bar): 155
Oil Flow (L/min) : 250
Brake: Manual
Dog Clutch: Manual
Base Dimensions (mm): 1810 x 1525

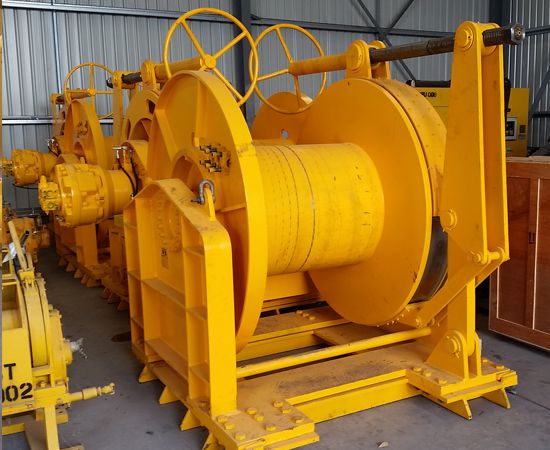

30 Tonne Mooring Winch IM-30TM-00X

IM-30TM-00x 30 Tonne Hydraulic Mooring Winch

Number Available: 4
Line Pull (tonne): 31.5
Brake Holding Capacity (tonne): 78
Line Speed (m/min): 10
Rope Diameter (mm): 52
Rope Capacity (m): 320
System Pressure (bar): 175
Oil Flow (L/min) : 280
Brake: Manual
Dog Clutch: Hydraulically operated
Base Dimensions (mm): 1850 x 1960

10-30 tonne mooring winches

Our 10-30 tonne mooring winches have powerful line pull capacities and full brake holding capabilities. They are available in 10 or 20 tonne as a standard configuration or we can customise a system for your specific winching requirements.

Whether you need one winch or multiple four point 10 tonne mooring winches, we can provide a solution. Call the winching specialist today on 08 9437 3589
