Mooring Winches

» EQUIPMENT » WINCHES » DIESEL WINCHES » UP TO 20t

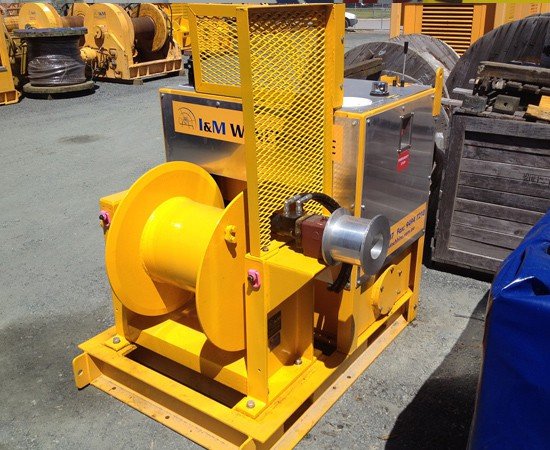

IM-5TDW-00x

IM-5TDW-00x 5T Diesel Winch

Number Available: 2
Line Pull (tonne): 5
Line Speed (m/min): 12
Rope Dia (mm): 16
Rope Capacity (m): 500
Capstan Line Pull  (kg): 800
Engine: Hatz 3L41C
Brake: Hydraulic
Dimensions (mm):  1100 x 1700 x 1900
Weight (kg):  1800

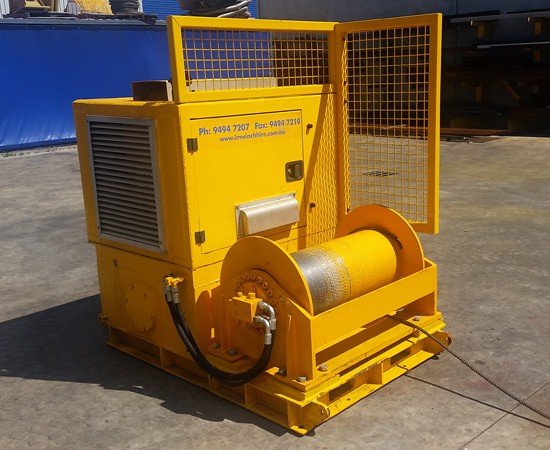

IM-6TDW-00x.

IM-6TDW-00x 6T Diesel Winch

Number Available: 1
Line Pull (tonne): 6
Line Speed (m/min): 12
Rope Dia (mm): 16
Rope Capacity (m): 600
Engine: Hatz 3L41C
Brake: Hydraulic
Dimensions (mm): 1300 x 1800 x 1800
Weight (kg): 3000

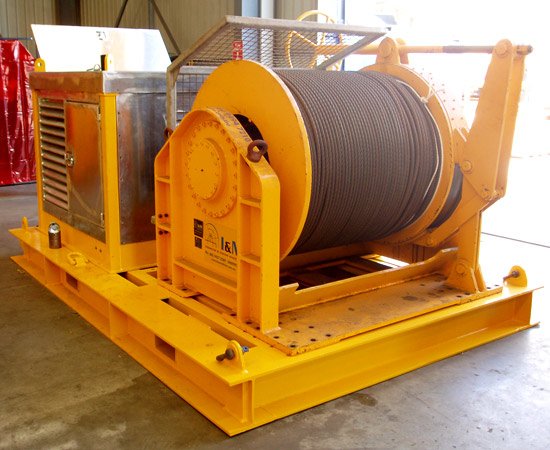

20TDW-00x

IM-20TDW-00x 20 Tonne Diesel Winch

Number Available: 1
Line Pull (tonne): 20
Line Speed (m/min): 10
Rope Dia (mm): 32
Rope Capacity (m): 700
Engine: Cummins 4BTA
Brake: Manual
Clutch For free wheeling: Manual
Dimensions (mm): 3500 x 2400
Weight (kg): 12,000

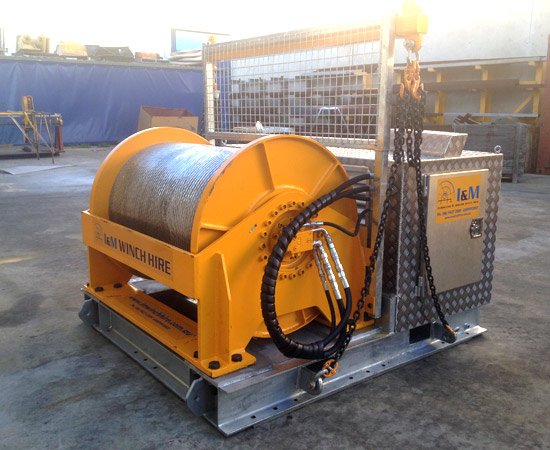

IM-7TDW-00x

IM-7TDW-00x 7T Diesel Driven Winch

Number Available: 2
Line Pull (tonne): 7 top layer
Line Speed (m/min): 20m (two-speed motor)
Rope Dia (mm): 16
Rope Capacity (m): 2300
Engine: Hatz 4L41C
Brake: Hydraulic
Clutch: Manual. Ability to free wheel wire from drum
Dimensions (mm):  2000mm (L) X 1800mm (W) X 1800mm (H)
Weight (kg): 3000
Lifting: Dedicated certified spreader bar, slings and lugs

Call us for diesel winches in Perth

Our range of diesel winches up to 20 tonnes offer all the power and winching flexibility that you could ever need. Engineered to the highest standards and fully certified, they are suitable for a range of industrial or marine applications.

Call our professional winch hire team today on 08 9437 3589 with your requirements. We are available for unbiased advice concerning our diesel winches and all our other winching equipment.
