Power Units

» EQUIPMENT » POWER PACKS  » DIESEL » 100+kW

IM110-HPU-004

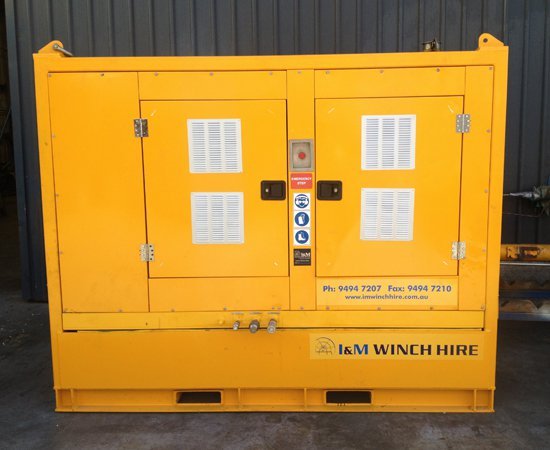

IM110-HPU-004 1x110kW Diesel Driven Hydraulic Power Unit

Engine Make : Cummins 6BTA
Engine Output (kW) : 110kW @ 1500rpm
Hydraulic Pump Size : 112
Pressure (bar) 3200bar (@ 140L /min
Max Flow (l/min) : 140
Weight (kg) : 3000
Dimensions (mm) : 3100 x 1250 x 2200


IM120-HPU-015

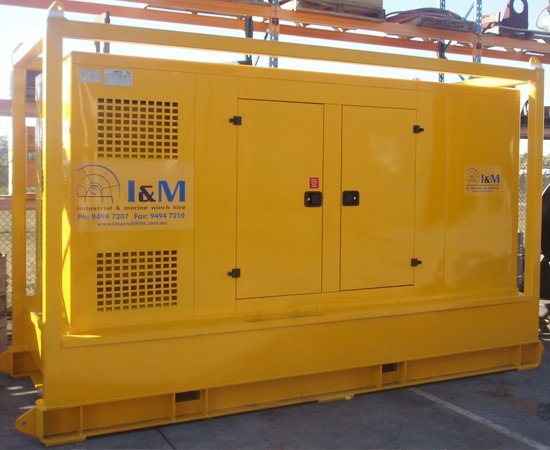

IM120-HPU-015
1x120kW Diesel Driven Hydraulic Power Unit

Engine Make: Cummins 6BTAA5.9
Engine Output (kW): 120kW @ 1500rpm
Hydraulic Pump Size: Dual 200cc + 45cc
Max Pressure (bar): 190 (@ 320L/min)
Max Flow (l/min): 320
Weight (kg): 6000
Dimensions (mm): 4000 x 1700 x 2650


IM120-HPU-001

IM120-HPU-001 120kW Diesel Driven Hydraulic Power Unit

Engine Make: Cummins 6BTAA
Engine Output (kW): 120kW @ 1500rpm
Hydraulic Pump Size: 280cc
Pressure (bar): 200 (@ 300L/min)
Max Flow (l/min): 420
Weight (kg): 5100kg
Dimensions (mm): 4500 x 1300 x 2300


IM-HPU-016

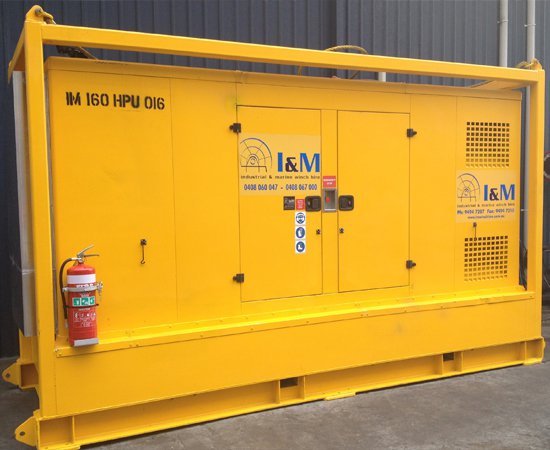

IM183-HPU-016 1x183kW Diesel Driven Hydraulic Power Unit

Engine Make: Cummins 6CTAA5.9
Engine Output (kW): 1830kW @ 1500rpm
Hydraulic Pump Size: Dual 200cc + 80cc
Max Pressure (bar): 245 (@ 380L/min)
Max Flow (l/min): 380
Weight (kg): 7000
Dimensions (mm): 4000 x 1700 x 2650


IM120-HPU-008A

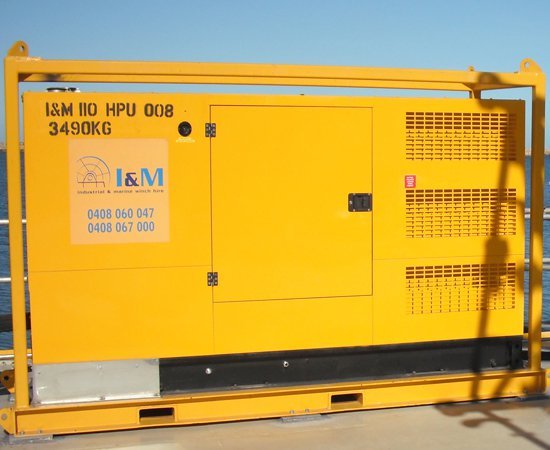

IM120-HPU-008A 1x120kW Diesel Driven Hydraulic Power Unit

Engine Make: Cummins 6BTA
Engine Output (kW): 120kW @ 1500rpm
Hydraulic Pump Size:
Dual 80cc piston pumps
Pressure (bar): 255bar (@ 240L/min)
Flow (l/min): 120 per pump
Weight (kg): 3500
Dimensions (mm): 3700 x 1300 x 2300

IM230-HPU-007

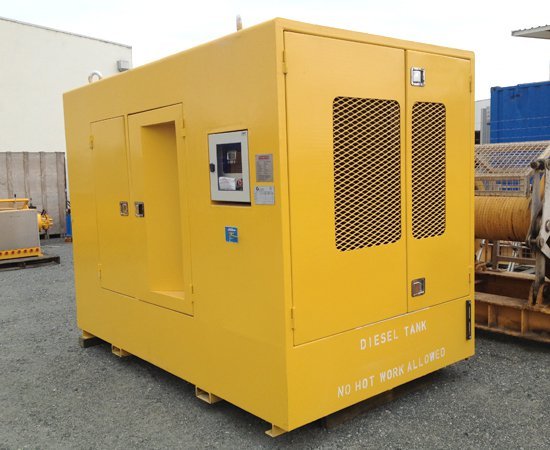

IM230-HPU-007/009 230kW Diesel Driven Hydraulic Power Unit

Number Available: 2
Engine Make: John Deere 609HF475
Engine Output (kW): 230kW rpm
Hydraulic Pump Size: 240cc
Max Pressure (bar): 330
Max Flow (l/min): 350
Weight (kg): 8000
Dimensions (mm): 3045 x 1820 x 2250

100-230kw diesel power packs

For your more demanding power supply needs, we can supply a range of units from 100kW to our phenomenal 230kw diesel power packs. These high powered hydraulic supply power packs have large capacity pumps up to 240cc and all of the necessary safety features for industrial use.

When you need real power, you need a powerful and reliable supply. Our sterling 230kW diesel power packs offer that kind of power. Call the team you can trust to get it right on 08 9437 3589 today.
